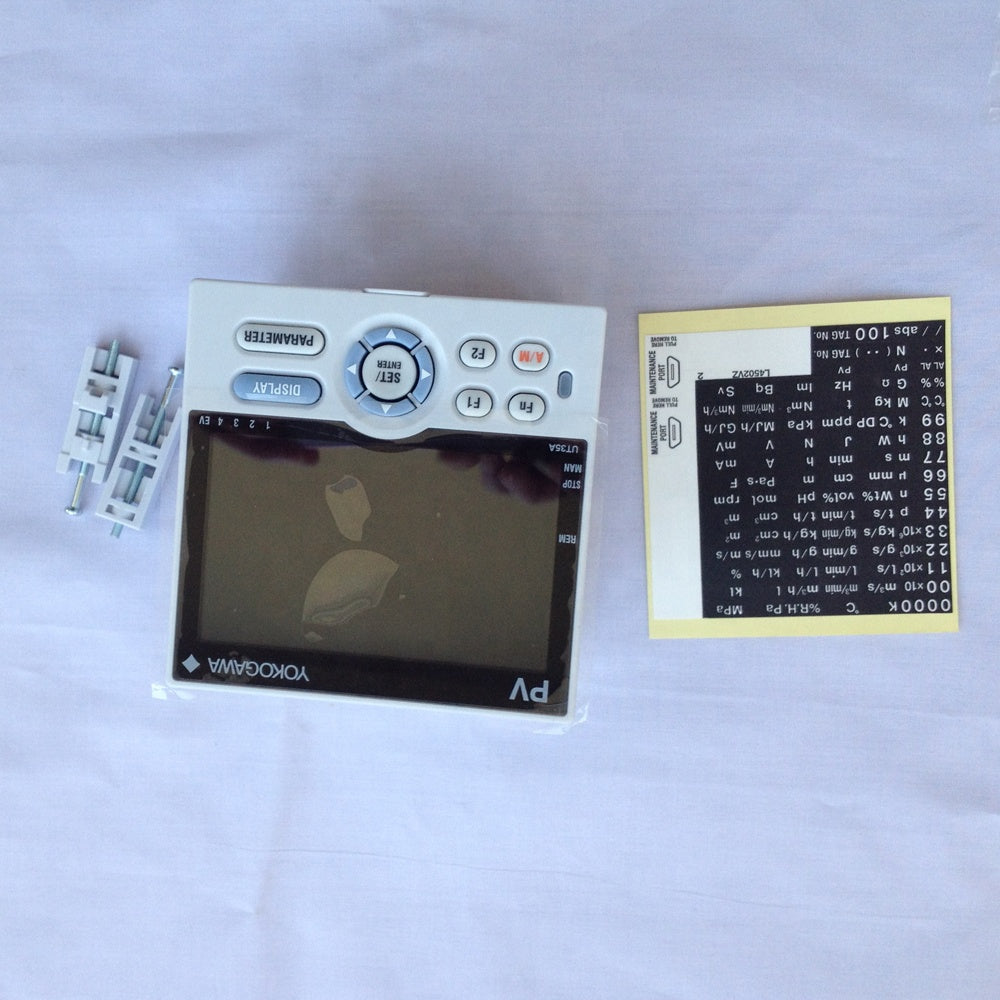

YOKOGAWA UT35A

  • Save $5.00
Shipping calculated at checkout.
Overview
Quick Details
Brand Name:
Yokogawa
Model Number:
UT35A
Brand:
Yokogawa
Type:
Temperature transmitter
Model:
UT35A
Delivery time:
6-8weeks
Term of payment:
TT 30% in advance
Control Mode:
Single-loop control
Control period:
200ms
Warranty:
one year
Types of control 01:
PID control ON/OFF control Two-position two-level control
Types of control 02:
Heating and cooling control
Supply Ability
Supply Ability
1000 Piece/Pieces per Year
Packaging & Delivery
Packaging Details
Standard packages

 YOKOGAWA Temperature Controller model UT35A price



The UT35A/MDL and UT32A/MDL controllers can be mounted in an enclosure. A ladder sequence func-tion is included as standard. The short depth of the controller helps save a space in an enclosure. The UT35A and UT32A also support open networks such as Ethernet communication.
The UT35A and UT32A have a Panel mounting type (without option code /MDL). For more details, please see General Specification GS 05P01D31-01EN.

Features:
Simple panel surface
Mounting the controller in an enclosure simplifies the panel surface.

Ladder sequence function is included as standard.
This function allows for creating a simple sequence control. Dedicated LL50A Parameter Setting Software (sold separatly) allows for performing programming using a ladder language.

Various built-in open network functions such as Eth-ernet are available.
Easy connection with various vendors’ PLCs is possible.(UT32A support CC-Link and RS485 communication only.)

Quick setting function
Setting only the minimum necessary parameters for operation is possible.

Equipped with a multitude of functions
Universal I/O and retransmission output are included as standard. PID control, heating/cooling control, etc. are available.

LL50A Parameter Setting Software (sold separately)
The parameters and ladder programs of UTAdvanced controller can be built from a PC using this software. It makes data management even easier.
